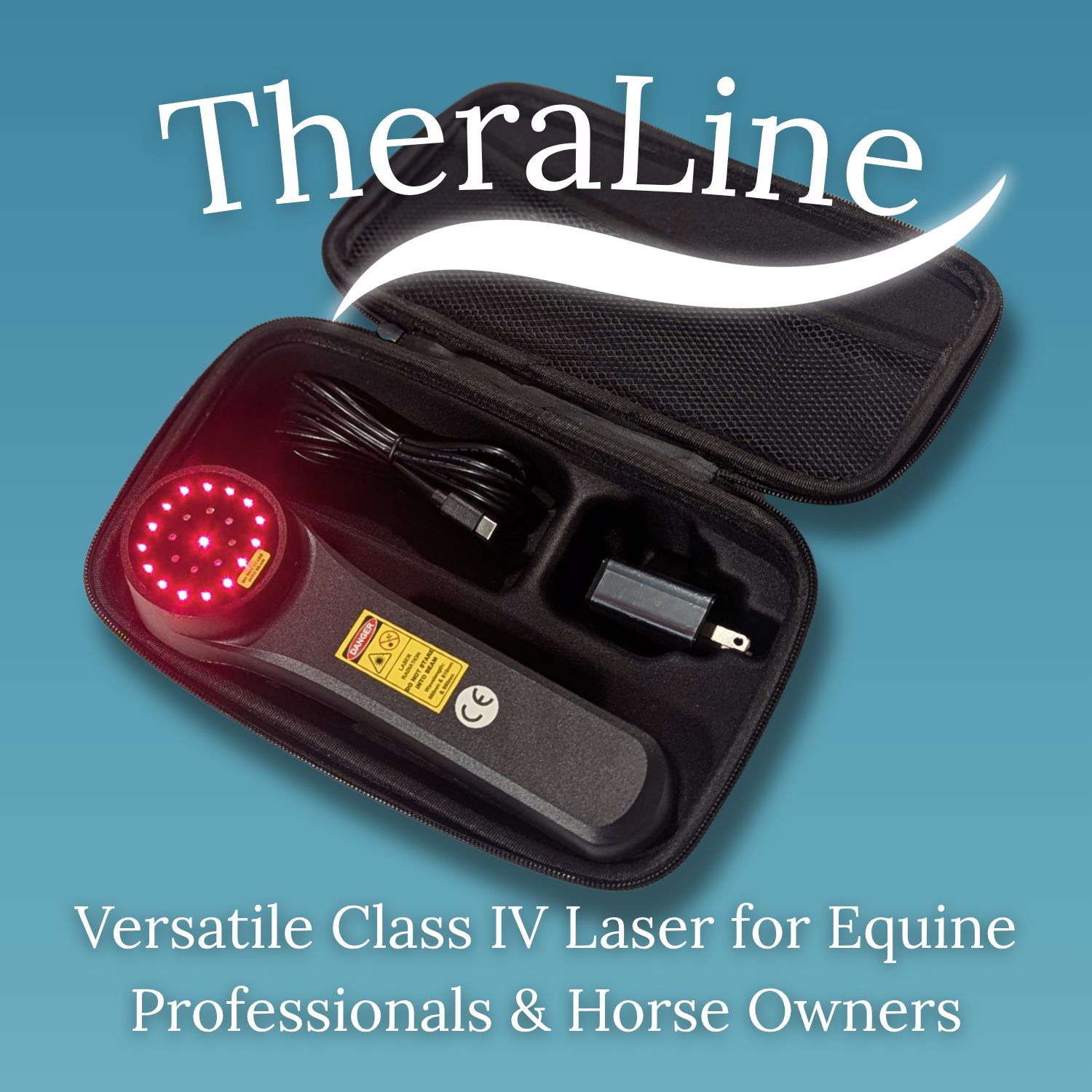

TheraLine Class IV Cold Laser

Multiple wavelengths & high intensity for focused therapy and faster results.

---

Light therapy is most effective when it can be matched to the tissue and situation .

Superficial structures, deeper muscle layers, and joint regions all respond differently depending on wavelength, intensity, and application time. The TheraLine Laser gives you that level of control in a single, portable unit.

---

Where this fits

This device is well-suited for:

• Equine health professionals who want a flexible, professional-grade cold laser
• Horse owners looking for a powerful tool for equine rehab or maintenance
• Situations where high irradiance and deep penetration matter

The broad spectrum of wavelengths make the laser useful for treating a wide range of areas, from superficial soft tissue to deeper structures.

---

Multi-wavelength design

The TheraLine Cold Laser combines three clinically studied wavelengths:

• 660nm (Red light) – supports superficial tissue and skin-level circulation
• 810nm (Near-infrared) – penetrates deeper into muscle and connective tissue
• 980nm (Near-infrared) – suited for even deeper structures and higher absorption in water-rich tissues

We selected these wavelengths specifically to allow you to work across a wide range of tissue depths without switching devices.

---

Adjustable output

The TheraLine Cold Laser allows you to adjust power output between 25/50/75/100%.

With both:

• Continuous mode
• Pulsed mode (10Hz)

---

How it’s used

• Adjustable session time (1–60 minutes)
• Can be used on targeted areas as needed
• Suitable for both short, focused applications and longer sessions

Always use with appropriate handling and awareness of the treatment area.

Never stare directly into the lasers.

---

Design features

• LCD display for:
  • Battery level
  • Mode selection
  • Power level
  • Timer control
• Adjustable treatment time (1–60 minutes)
• Continuous and pulsed (10Hz) modes

What's included?

1. TheraLine Class IV Cold Laser
2. Charging Brick and Cable
3. User Manual
4. Protective Eyewear
5. Carrying Case

---

Battery

• Battery capacity: 3600 mAh
• Approx. 3.5 hours of use per charge
• ~5 hours to fully recharge

---

Output & configuration

• Max power: 1760 mW
• 24 total laser diodes:
  • 16 × 660nm red light (10 mW each)
  • 4 × 810nm near-infrared (200 mW each)
  • 4 × 980nm near-infrared (200 mW each)

---

A note on use

This is a powerful & adjustable device intended for intentional, targeted application .

If you’re new to laser therapy, we recommend starting with shorter sessions and lower power settings while you become familiar with using the device.

You will be provided a user manual and protocol guide to assist you while you get the hang of things.

---

Questions

If you’re deciding between this and a pad or wrap, or you’re not sure whether the laser is right for you & your horse, feel free to leave a message by clicking the chat button in the corner of your screen. I’m happy to help you think it through.
